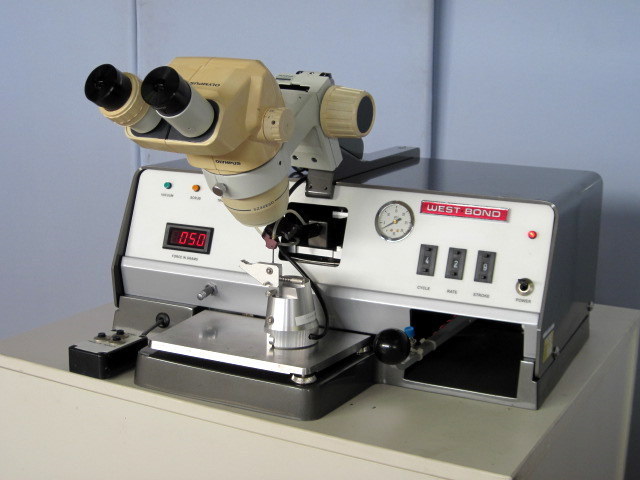

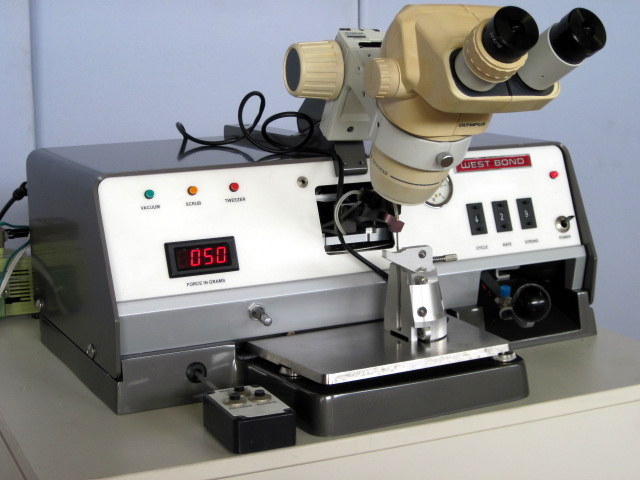

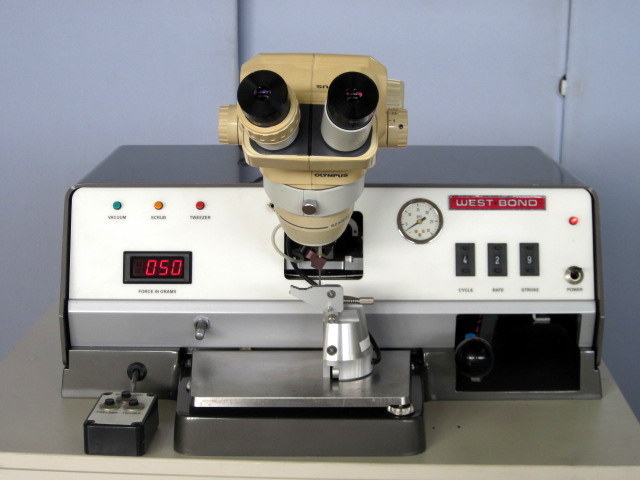

WEST BOND／Pin Set Manual Die Bonder／MODEL7367A Ref.No.03082
  • Eutectic Pin Set Die Bonder
  • Bonding Style : Eutectic bonding style (heat+load+scrub)
  • Load : Changeable from 5 to 150g

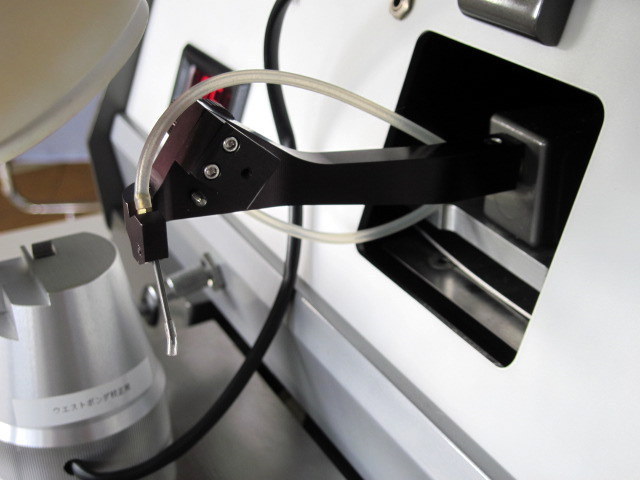

  • Chip Pickup Style : Air pin set style

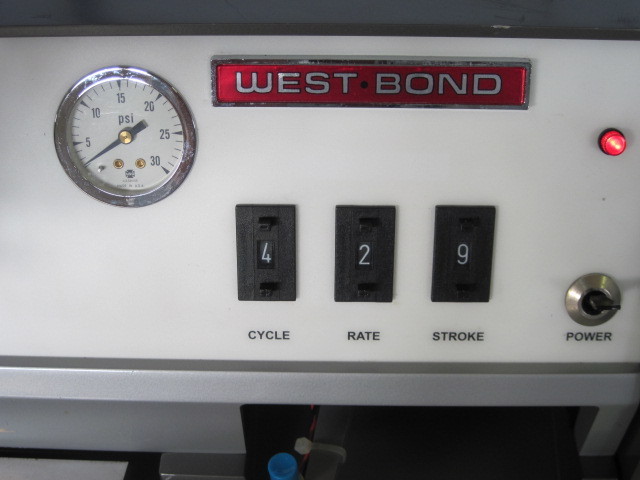

  • Scrub Cycle : 0-9 scales, 10 stages changeable
  • Scrub Rate : 0-9 scales, 10 stages changeable
  • Scrub Stroke : 0-9 scales, 10 stages changeable
  • Scrub Way : X way
  • Accessories : Stereo microscope, Jig for proofreading(including weight), Small pump

*Work holder and Temperature controller is not attached.
