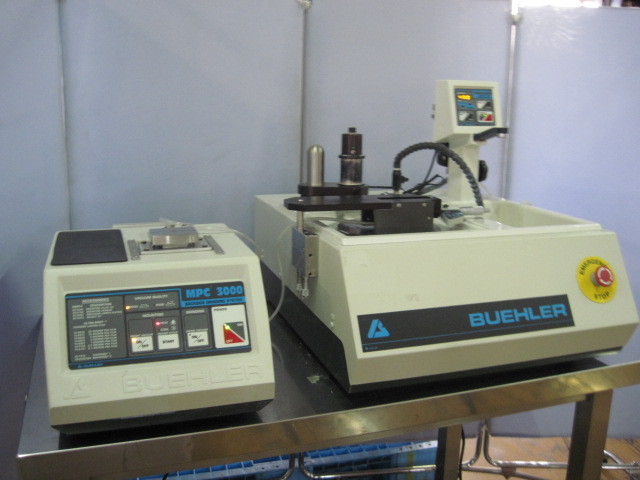

Buehler／Precision Parallel Griding System／MPC3000 Ref.No.03074

It is possible to do IC chip backside griding, wafer frontside film grinding, and multilayer pattern griding.

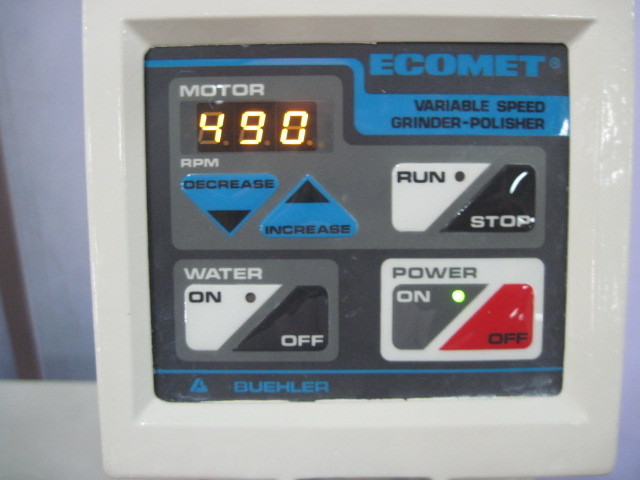

  • Griding Plate Revolution : 10-490 RPM

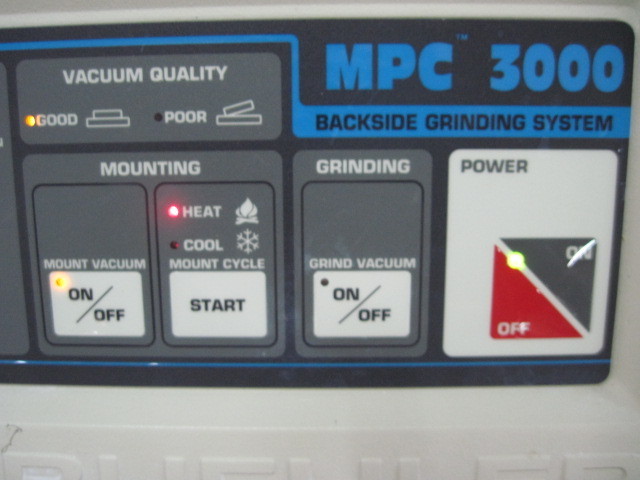

  • Sample Mouting Unit : Heat / cool unit(110 deg max.), Built-in vacuum pump

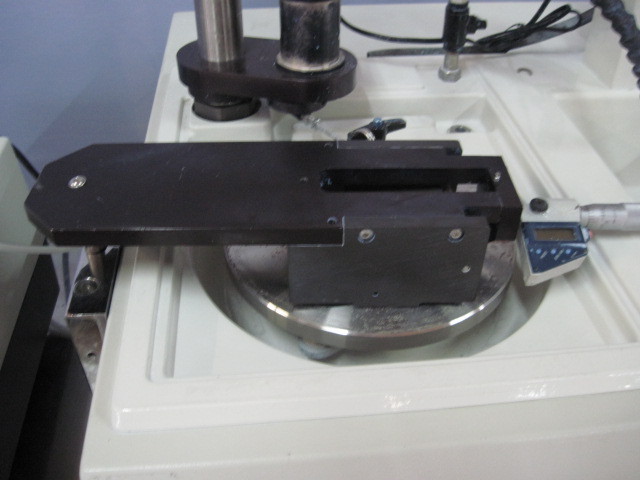

  • Griding Fixture : 1μm reader digital micrometer, Oscillating system connection
  • Power Supply : AC100V  50/60Hz  750W

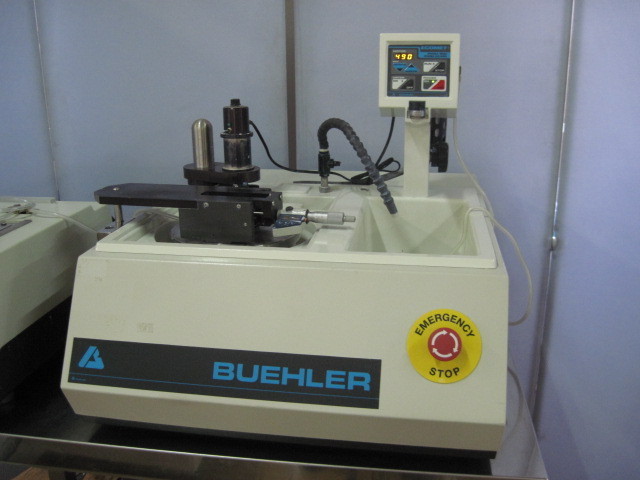

  • Griding Unit Dimension / Weight : W572 x D715 x H572(mm) / 91kg

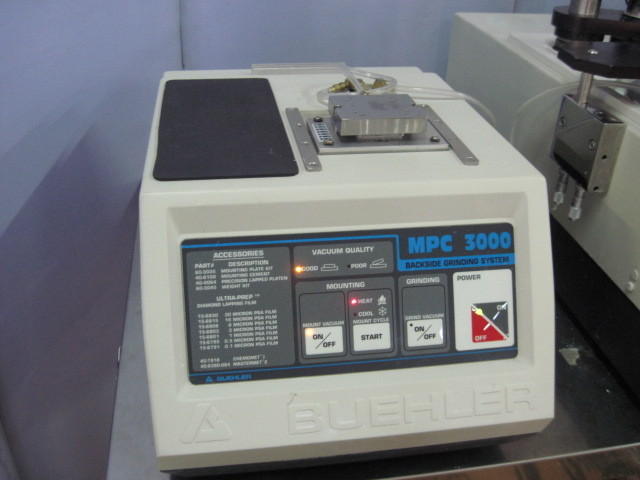

  • Sample Mounting Unit Dimension / Weight : W305 x D475 x H278(mm) / 15kg
